RS232 Interface 3G Modem Support download driver 7.2 Mbps DL sms blasting machine sms marketing machine

FOB Reference Price:Get Latest Price
$24.00 - $58.00 / Set | 1 Set/Sets 3G Modem (Min. Order)
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 10 >10
Est. Time(days) 1 Negotiable
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Bailing 3G Modem
Model Number:
PDS8 PDS5 PDS6 3G Modem
Type:
Wireless
Interface Type:
RS-232, RS232 +MINI USB
Transmission Rate:
DL: max. 7.2Mbps, UL: max. 5.76 Mbps
Style:
External
Products Status:
Stock
GSM:
850/900/1800/1900 MHz 3G Modem
Function:
sms/mms/vocie/data
Support:
STK TCP/IP stack access via AT commands
3G Frequency:
Fivebands UMTS/HSPA+ (WCDMA/FDD) 850/800/900/1900/2100 MHz
Antenna:
External 3G Modem
OS:
Win 8/7/Vista/XP/2000/2003/lunix
DL UL:
DL: max. 7.2Mbps, UL: max. 5.76 Mbps
Internet service:
TCP/UDP/HTTP/SMTP/POP3/SNMP/SSL/SIP(IP)
Name:
3G Modem
Certification:
CE ROHS
Supply Ability
Supply Ability:
10000 Set/Sets per Month 3G Modem
Packaging & Delivery
Packaging Details
netural packing for 3G Modem
Port
shenzhen
Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(days) 1 To be negotiated



Product Description

RS232 Interface 3G Modem Support download driver 7.2 Mbps DL Bulk sms machine





 CINTERION (8).jpgCINTERION (16).jpg

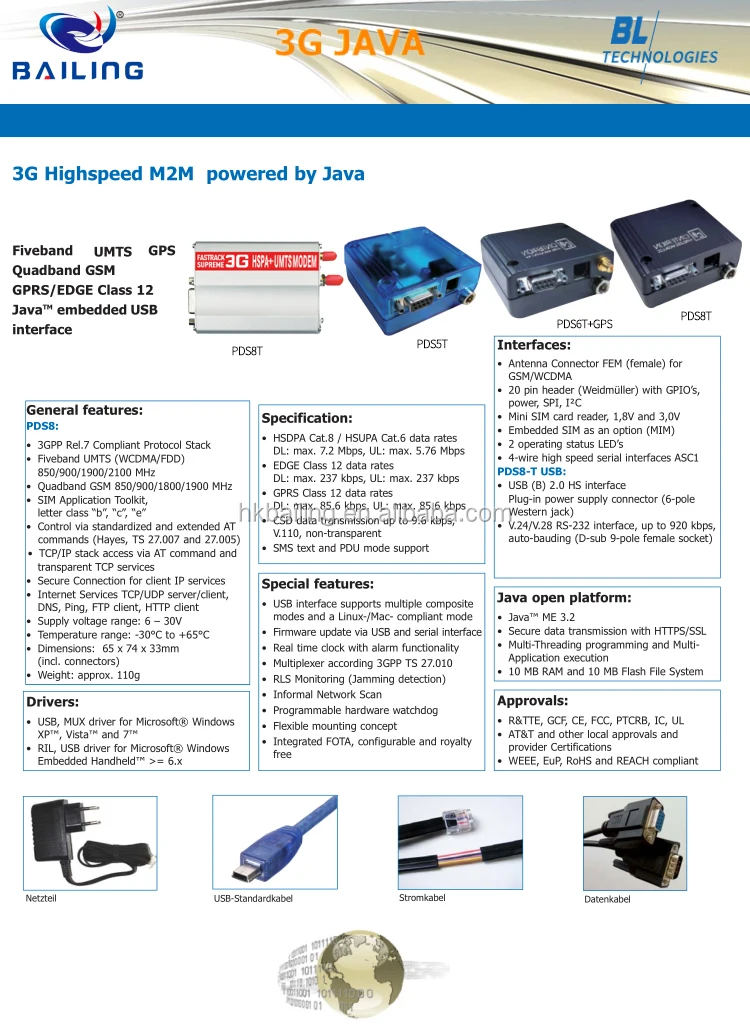

3G Highspeed M2M powered by Java







Fiveband GPS
Quadband GSM
GPRS/EDGE Class 12
JavaTM embedded USB
interface



General features:
PDS8:
• 3GPP Rel.7 Compliant Protocol Stack
• Fiveband UMTS (WCDMA/FDD)
850/900/1900/2100 MHz
• Quadband GSM 850/900/1800/1900 MHz
• SIM Application Toolkit,
letter class “b”, “c”, “e”
• Control via standardized and extended AT
commands (Hayes, TS 27.007 and 27.005)
• TCP/IP stack access via AT command and
transparent TCP services
• Secure Connection for client IP services
• Internet Services TCP/UDP server/client,
DNS, Ping, FTP client, HTTP client
• Supply voltage range: 6 – 30V
• Temperature range: -30°C to +65°C
• Dimensions: 65 x 74 x 33mm
(incl. connectors)
• Weight: approx. 110g


Specification:
• HSDPA Cat.8 / HSUPA Cat.6 data rates
DL: max. 7.2 Mbps, UL: max. 5.76 Mbps
• EDGE Class 12 data rates
DL: max. 237 kbps, UL: max. 237 kbps
• GPRS Class 12 data rates
DL: max. 85.6 kbps, UL: max. 85.6 kbps
• CSD data transmission up to 9.6 kbps,
V.110, non-transparent
• SMS text and PDU mode support
Approvals:
• R&TTE, GCF, CE, FCC, PTCRB, IC, UL
• AT&T and other local approvals and
provider Certifications
• WEEE, EuP, RoHS and REACH compliant


Interfaces:
• Antenna Connector FME (female) for
GSM/WCDMA
• 20 pin header (Weidmüller) with GPIO’s,
power, SPI, I²C
• Mini SIM card reader, 1,8V and 3,0V
• Embedded SIM as an option (MIM)
• 2 operating status LED’s
• 4-wire high speed serial interfaces ASC1
PDS8-T USB:
• USB (B) 2.0 HS interface
Plug-in power supply connector (6-pole
Western jack)
• V.24/V.28 RS-232 interface, up to 920 kbps,
auto-bauding (D-sub 9-pole female socket)


Drivers:
• USB, MUX driver for Microsoft® Windows
XP™, Vista™ and 7™
• RIL, USB driver for Microsoft® Windows
Embedded Handheld™ >= 6.x
Fiveband GPS
Quadband GSM
GPRS/EDGE Class 12
JavaTM embedded USB
interface
3G Highspeed M2M powered by Java


Special features:
• USB interface supports multiple composite
modes and a Linux-/Mac- compliant mode
• Firmware update via USB and serial interface
• Real time clock with alarm functionality
• Multiplexer according 3GPP TS 27.010
• RLS Monitoring (Jamming detection)
• Informal Network Scan
• Programmable hardware watchdog
• Flexible mounting concept
• Integrated FOTA, configurable and royalty


free Java open platform:
• Java™ ME 3.2
• Secure data transmission with HTTPS/SSL
• Multi-Threading programming and Multi-
Application execution
• 10 MB RAM and 10 MB Flash File System
Netzteil USB-Standardkabel Stromkabel Datenkabel
UMTS
PDS8T PDS5T PDS6T +GPS PDS8T Ba

COMPUTER SYSTEM SUPPORT



Modem application:

 paste-pic-dp_uuid_vjzazpaste-pic-dp_uuid_7wmm7


CINTERION (9).jpgCINTERION (5).jpg
